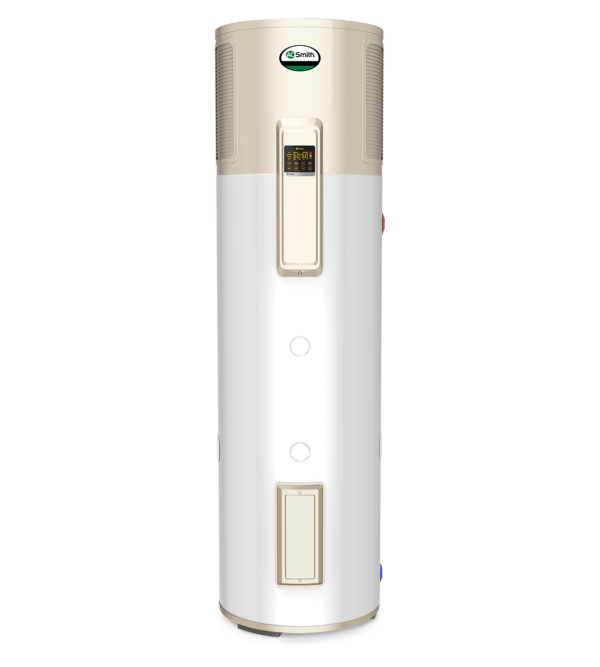

HPI – D 40-50 Series
The HPI Series is an integrated Heat Pump Water Heater which can be installed at any service area or balcony of a house. It is loaded with features such as the AES and an interactive remote control which reduces the user’s water heating costs by 75%. MAX function is available for more hot water output, therefore better bathing experience.
Features
HPI – D Series | 40 | 50 |
Volume [L] | 150 | 180 |
Voltatge /Frequency [V/Hz] | 230 /50 | 230 /50
|
Dimension (in mm) | 1660 mm | 1850 mm |
Rate Input Power / Rated Current [W/A] | Efficiency mode - 460/2.5 | Efficiency mode - 460/2.5 |
Tank Rated Pressure (BAR ) | 10 | 10 |
Net Weight [KG] | 87 | 92 |

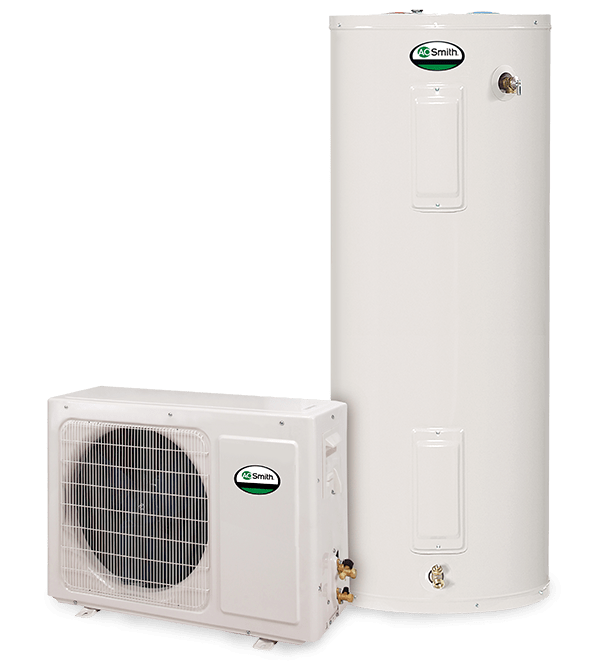

HPA – 80/120 Split type
The HPA series is a Split Type Heat Pump Water Heater which has a dedicated outdoor unit that can be placed on a terrace/balcony/service areas. The COPs of 3.6 & 4.2 is one of the best in the industry. The user enjoys efficient water heating and an array of features which gives him the ultimate bathing experience.
Features
HPI – 80/120 Split type | 80 | 120 |
Volume [L] | 300 | 450 |
Voltatge /Frequency [V/Hz] | 230 /50 | 230 /50 |
Dimension (in mm) | 560 x 320 x 835 | 740 x 350 x 820 |
Rate Input Power / Rated Current [W/A] | Efficiency mode - 1010/4.6 | Efficiency mode - 1380/6.5 |
Tank Rated Pressure (BAR ) | 10 | 10 |
Weight of external unit (KG) | 37 | 55 |
Net Weight [KG] | 98 | 133 |

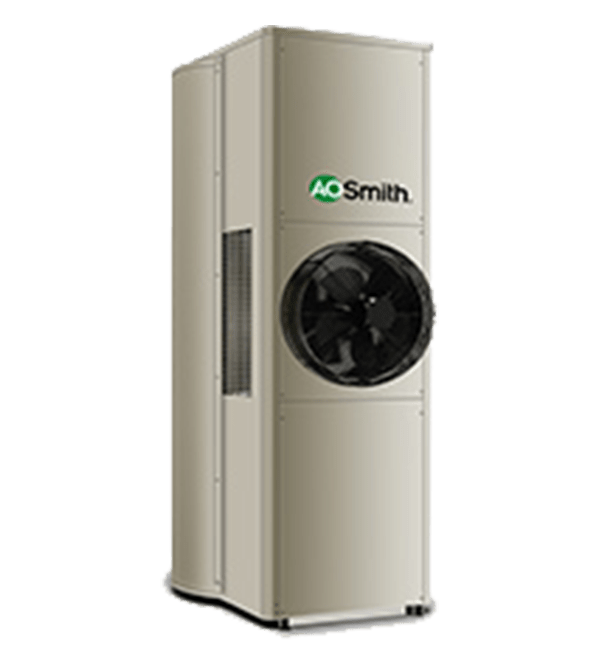

CAHP – 1.5HP DI (80-06 / 120-06)
The CAHP series are aesthetically designed to give the user a premium bathing experience. It has a unique heat exchanger design that helps the machine achieve 65 degrees temperature via Heat Pump mode. The electrical heating capacity is 6 kW. At extreme cold conditions, the automatic intelligent defrost function solves problems like freezing of the heat exchanger, frosting and resumes the system to operate efficiently.
Features
HPI – 80/120 Split type | 80 | 120 |
Volume [L] | 300 | 450 |
Voltatge /Frequency [V/Hz] | 230 /50 | 230 /50 |
Dimension (in mm) | 560 x 320 x 835 | 740 x 350 x 820 |
Rate Input Power / Rated Current [W/A] | Efficiency mode - 1010/4.6 | Efficiency mode - 1380/6.5 |
Tank Rated Pressure (BAR ) | 10 | 10 |
Weight of external unit (KG) | 37 | 55 |
Net Weight [KG] | 98 | 133 |

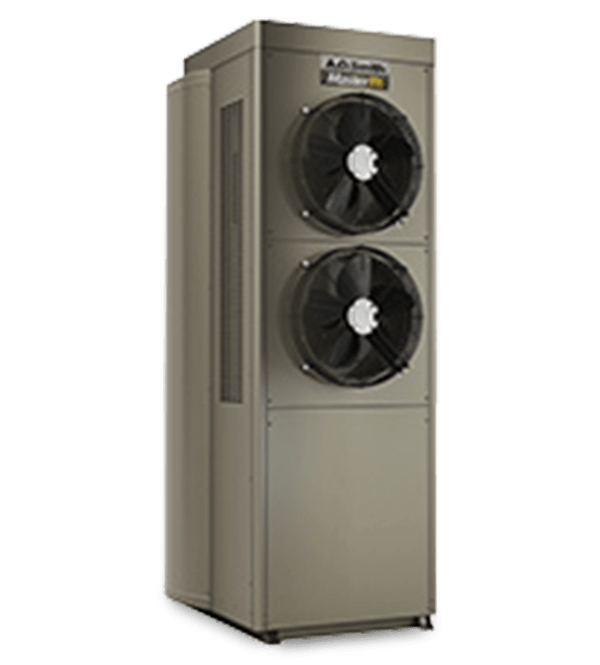

CAHP – 3HP DI
The Dual Fan CAHP series are aesthetically designed to give the user a premium bathing experience. It has a unique heat exchanger design that helps the machine achieve 65 degrees temperature via Heat Pump mode. The electrical heating capacity is 12 kW. At extreme cold conditions, the automatic intelligent defrost function solves problems like freezing of the heat exchanger, frosting and resumes the system to operate efficiently.
Features
CAHP – 3HP DI | |
Tank Capacity [L] | 455 |
Operation Mode | Efficiency, High Demand, Standard |
Dimension (in mm) | 1770 x 995 x 785 |
Control Made | LED Wire Display |
Net Weight [KG] | 229 |

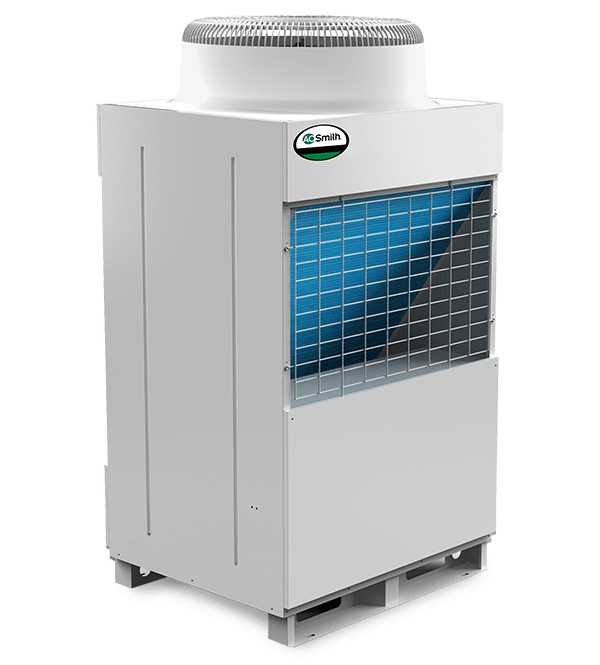

CAHP – MC – 19/38
The MC Series Heat Pump Water Heater is suitable for all large scale applications. Applications requiring significant hot water usage will maximize energy savings with the shortest payback periods. Best of all, Heat Pump Water Heaters are three times more efficient than standard electric water heaters and upto four times more efficient than conventional gas water heaters.
Features
CAHP – MC – 19/38 | MC-19 | MC-38 |
Voltage Range | 380V +/- 10% | 380V +/- 10% |
Dimension (in mm) | 1160 x 761 x 719 | 1840 x 846 x 1020 |
Net Weight [KG] | 170 | 287 |
